System Requirements

1. A minimum screen width of 768px is required to use the drawing tool.
2. A screen width larger than 1800px is recommended
3. A mouse is recommended.

Getting Started

Add any element to the canvas by clicking it's icon in the left side-bar, entering any required property values and clicking the 'add' button.

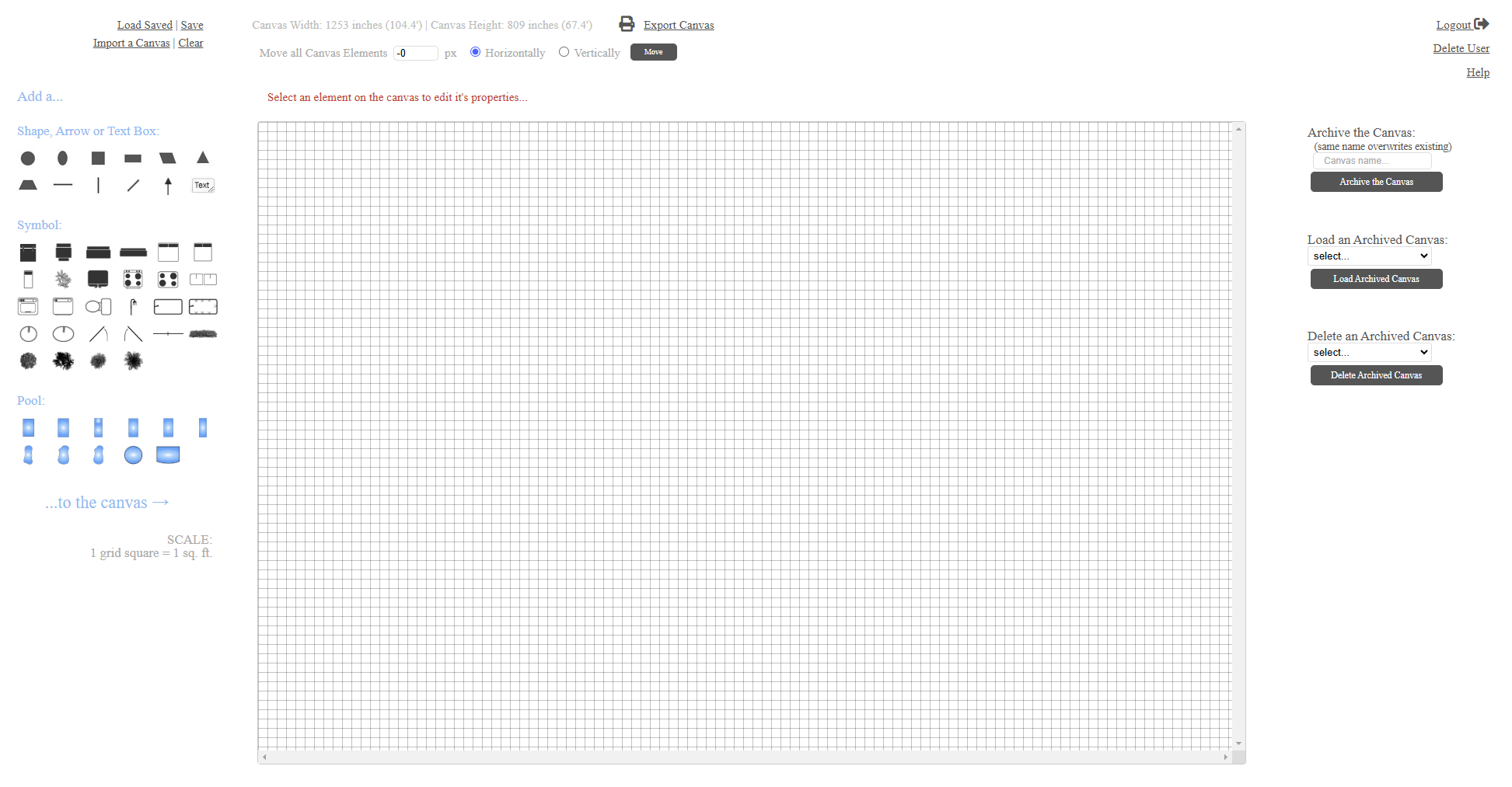

The Canvas

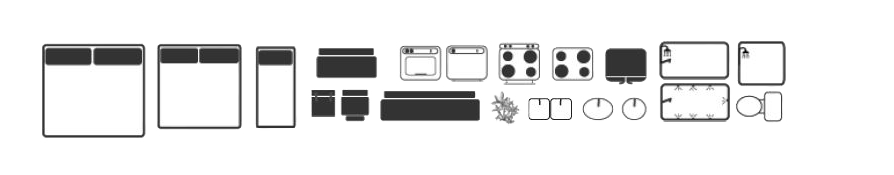

Available Canvas Elements

Available Actions for Canvas Elements

1. Click-hold and drag (or touch drag) an element to move it.
2. Double-click an element to remove it.
3. Click (or touch) an element to edit it's properties.
4. Right-click an element to disable or enable dragging, or to copy it.
5. Right-click the canvas to paste a copied element.

---

Saving a Drawing

 Along the bottom, or right side, are 3 buttons...

1. Click 'Save Canvas' to save the current canvas in your account.
    (using an existing name overwrites a canvas)
2. Click 'Load Canvas' to load a canvas from your account.
3. Click 'Delete Canvas' to delete a canvas from your account.

Exporting a Drawing

1. Click 'Print Current Canvas' to print the current canvas or save it as a PDF.
2. Click 'Export Current Canvas' to save the current canvas as a file and download it.

Importing a Drawing

1. Click 'Import a Canvas' and choose a previously exported canvas file.

---

Sample Drawings

These sample drawings are of a 3 bedroom 4 bathroom house with a family room, a home office, a reading room, a den, an open kitchen, dining and living area, a walk-in closet in the master bedroom, private bathrooms in all of the bedrooms, a wrap around porch, an upper level terrace, and a 3 car garage with an oversized driveway.

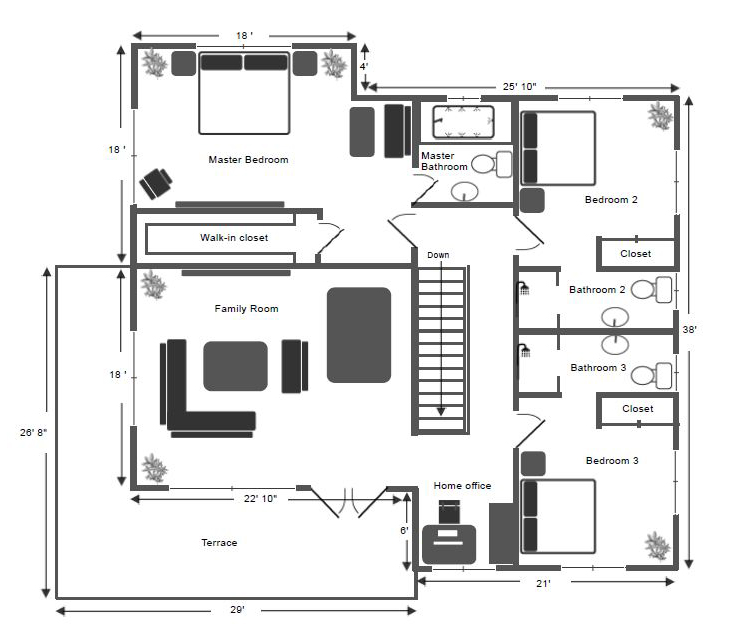

Upstairs

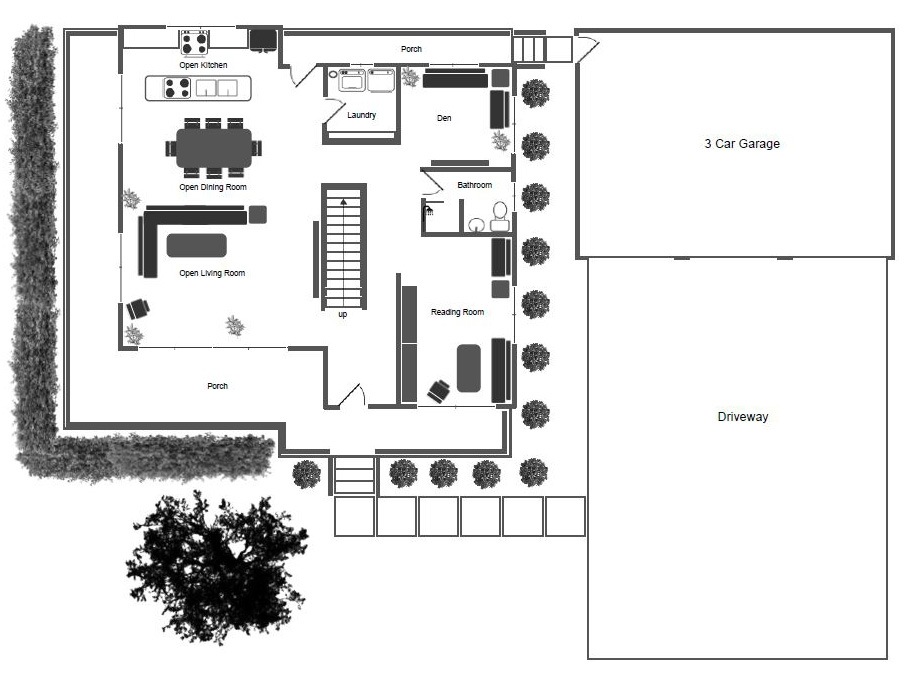

Downstairs
